4D Printing: The Next Frontier in Additive Manufacturing

4D printing is an emerging technology that extends the capabilities of traditional 3D printing by enabling printed objects to change their shape, properties, or function over time as 4th dimension, thus 4D printing. The change occurs  in response to external stimuli such as heat, moisture, light, or magnetic fields.

This innovation is made possible through the use of smart, stimuli-responsive materials, promising significant advancements in fields such as biomedical engineering, aerospace, and robotics.

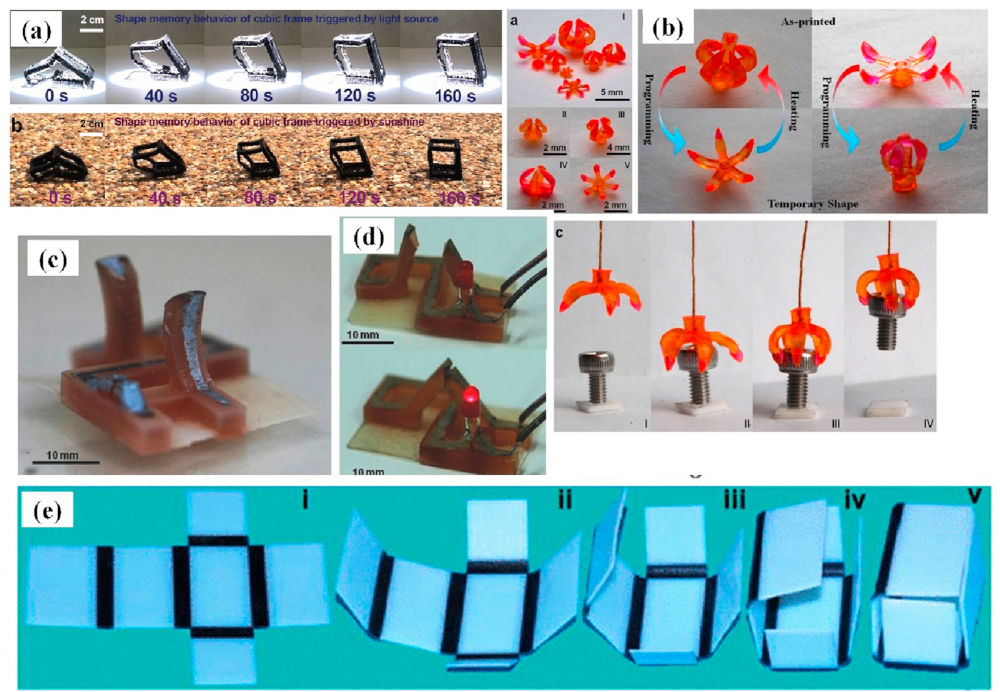

Figure 1: Examples of 4D printed materials under different stimulus

Fundamentals of 4D Printing

Unlike conventional 3D printing, which produces static objects, 4D printing incorporates time as the fourth dimension. This means that after fabrication, the printed structure can transform itself when exposed to specific environmental triggers.

The process typically involves:

• Material Selection: Choosing appropriate smart materials, such as shape-memory polymers, hydrogels, or composites, that can undergo controlled transformations.
• Design: Using computer-aided design (CAD) to model the desired 3D structure and its transformation behavior.
• Fabrication: Employing 3D printing techniques to produce the object with integrated shape-changing properties.
• Activation: Exposing the printed object to a stimulus (e.g., heat, moisture, light), triggering the designed transformation

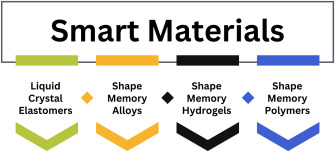

Figure 2: Overview of smart materials

The core of 4D printing lies in the development and use of smart materials, including:

• Shape-memory polymers: Plastics that return to a pre-set shape when heated.
• Hydrogels: Water-absorbing polymers that swell or shrink in response to moisture.
• Bio-inks: Biocompatible materials containing living cells, mostly used in biomedical applications

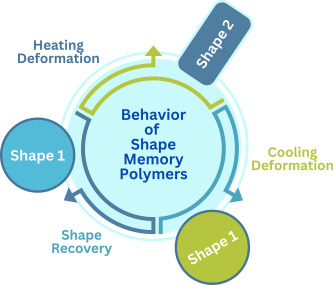

Figure 3: Behavior of shape memory polymers

These materials are engineered to respond predictably to external stimuli, enabling a wide range of programmable transformations.

4D printing is rapidly finding applications in different sectors:

Biomedical Engineering:

• Tissue engineering: Fabrication of scaffolds that can change shape to better mimic natural tissue development or fit patient-specific anatomies .
• Drug delivery: Creation of devices that release medication in response to specific physiological triggers
• Medical devices: Production of implants and sensors that adapt to changing biological conditions, improving patient comfort and treatment efficacy

Aerospace and robotics:

Development of components that self-assemble or adapt to environmental conditions, reducing the need for complex mechanical systems

Diagnostics :

Creation of smart sensors and diagnostic tools that respond to biological markers, enabling more accurate and real-time health monitoring

Despite its promise, 4D printing faces several challenges:

• Material limitations: Issues with biocompatibility, mechanical strength, and degradation rates of smart materials
• Fabrication complexity: Integrating multiple materials with precise control over transformations remains technically demanding
• Regulatory and ethical issues: Particularly in biomedical applications, ensuring safety and efficacy is paramount

Future research is focusing on:

• Developing new smart materials with enhanced properties.
• Integrating sensors and electronics for real-time monitoring and feedback.
• Creating biohybrid systems that combine living cells with engineered materials for regenerative medicine

Research in 4D printing is highly interdisciplinary and international, with significant contributions from institutions in Asia, North America, and Europe. China, Singapore, and the United States are leading in publication volume and innovation

4D printing represents a transformative leap in additive manufacturing, enabling the creation of dynamic, adaptive structures. Its integration of smart materials and advanced design strategies opens new possibilities in medicine, engineering, and beyond. Continued interdisciplinary collaboration and innovation will be key to overcoming current challenges and unlocking the full potential of this technology.

References

1. 4D printing: Fundamentals, materials, applications and challenges ScienceDirect.
2. Direct 4D printing of ceramics driven by hydrogel dehydration Nature
3. 4D Printing: The Development of Responsive Materials Using 3D ... PMC
4. 4D Printing: Technology Overview and Smart Materials Utilized Science Publications
5. 4D Printing in Biomedical Engineering: Advancements, Challenges ... PMC
6. A review of 4D printing – Technologies, shape shifting, smart ... ScienceDirect
7. Evolution and emerging trends of 4D printing: a bibliometric analysis EDP Sciences
